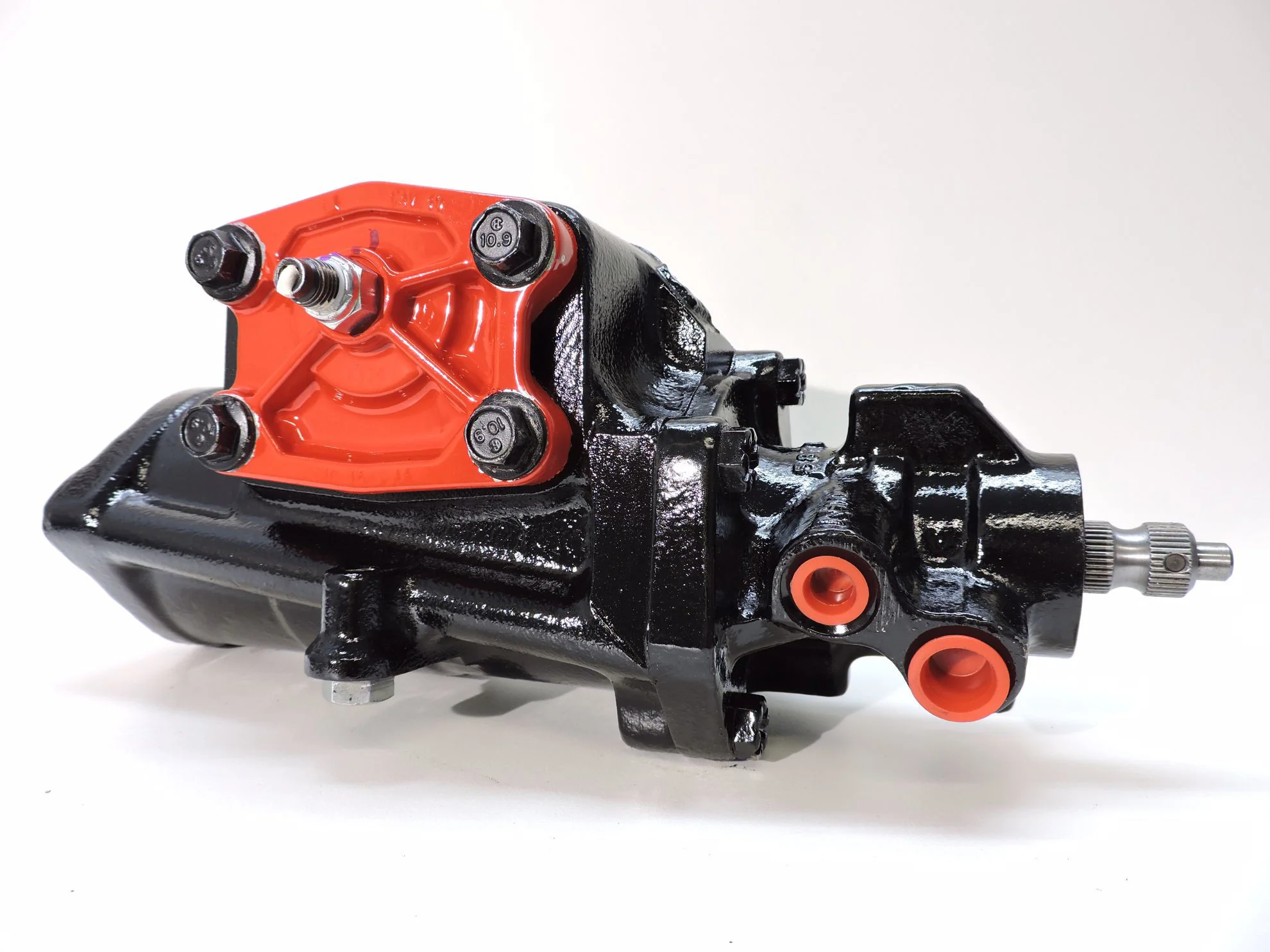

1999-2004 Ford F-250 to F-550 Pickup Trucks, 2000-2005 Excursion, or 1999-2004 Vans Steering Gear RDH_2764BS

Part Number: 2764BS (4 Turns).
Part Number Fits: 1999-2004 Ford F-250 to F-550 Pickup Trucks, 2000-2005 Excursion, or 1999-2004 Vans.

Special Notes: Be sure to do a spline peak count of your output or sector shaft, which indirectly connects to the tires, you should have a total of 36 splines. (Please view the third picture on the left, you will see you have 9 spline peaks between each master spline, and there is 4 master splines, so 9 times 4 = 36 splines)

If you have a 32 spline sector shaft, please click on the following link to view: 2764

NEW: We now stock a pitman arm for this gear. Along with several other benefits, this also eliminates the need to remove your old pitman arm from your core. If you've ever struggled with pitman arm pullers breaking or had to resort to torches or cut-off wheels, this is the solution for you. Order a pitman arm from us and skip what is possibly the most challenging part of the installation! Learn more about our pitman arms here.



Stock Pitman arm (Fits 1999-2005 Ford Excursion stock suspension or level lift kits up to 3.5 inches): PA-2764BS-EX

Stock Pitman arm (Fits 1999-2004 2WD Ford Trucks stock suspension or level lift kits up to 3.5 inches): PA-2764BS-2WD

Stock Pitman arm (Fits 1999-2004 4WD Ford Trucks stock suspension or level lift kits up to 3.5 inches): PA-2764BS-4WD

Drop Pitman arm (Fits 1999-2004 Ford Trucks suspension lift kits 4-6 inches): DPA-2764BS
